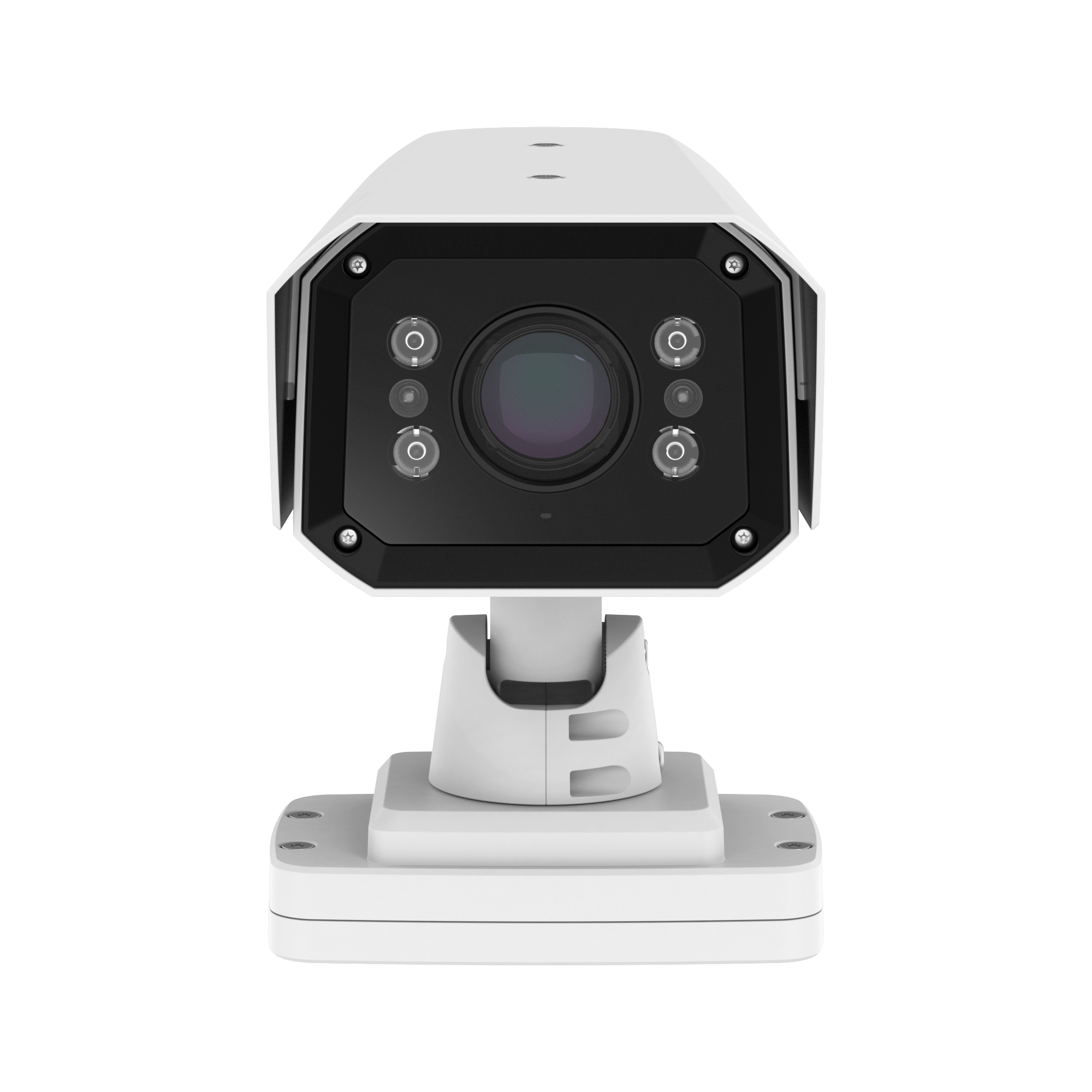

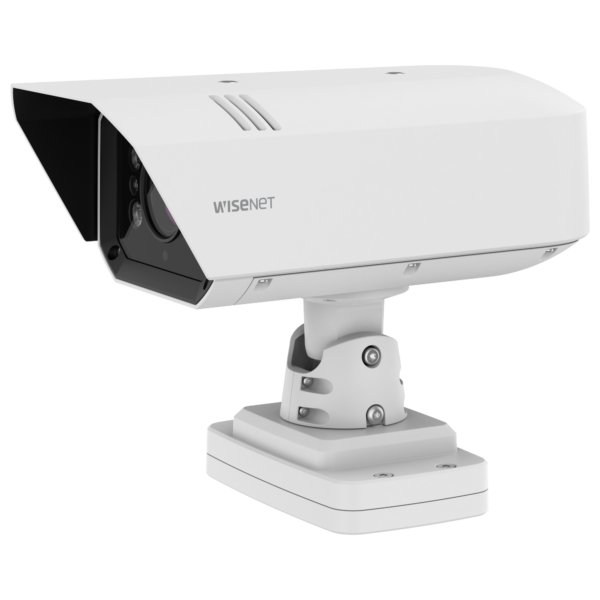

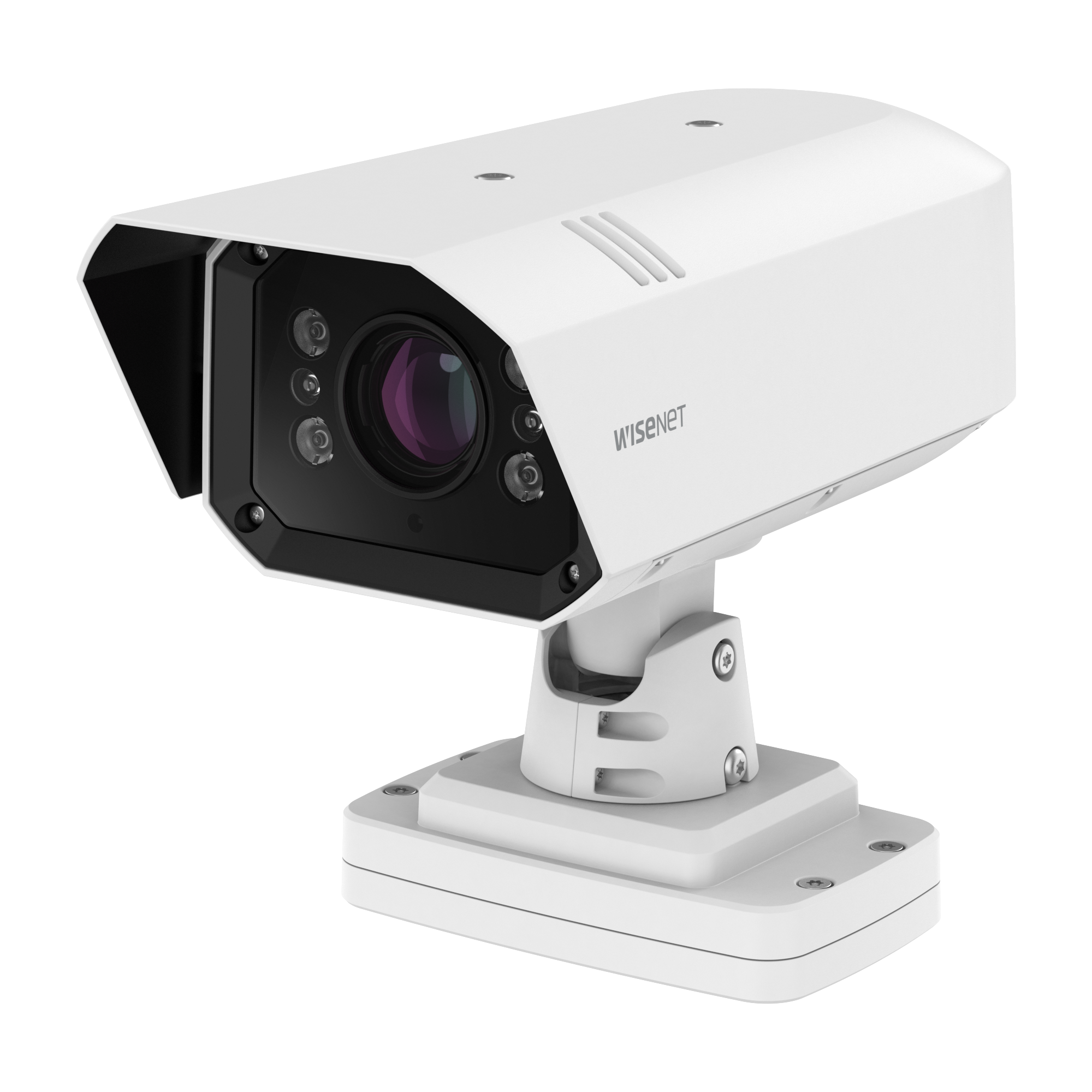

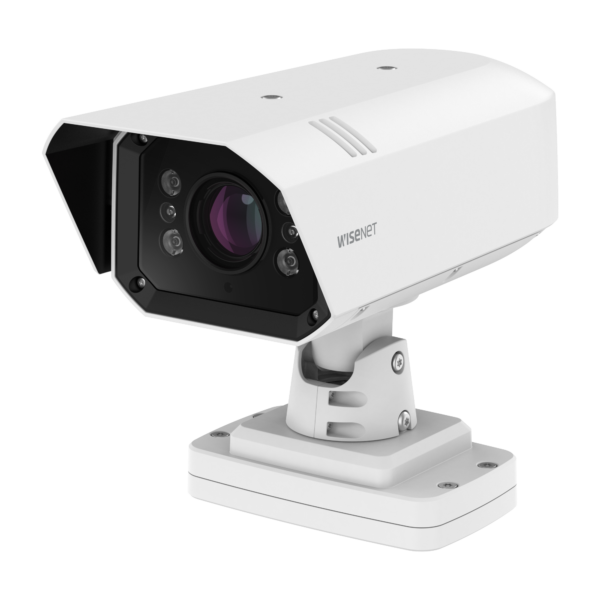

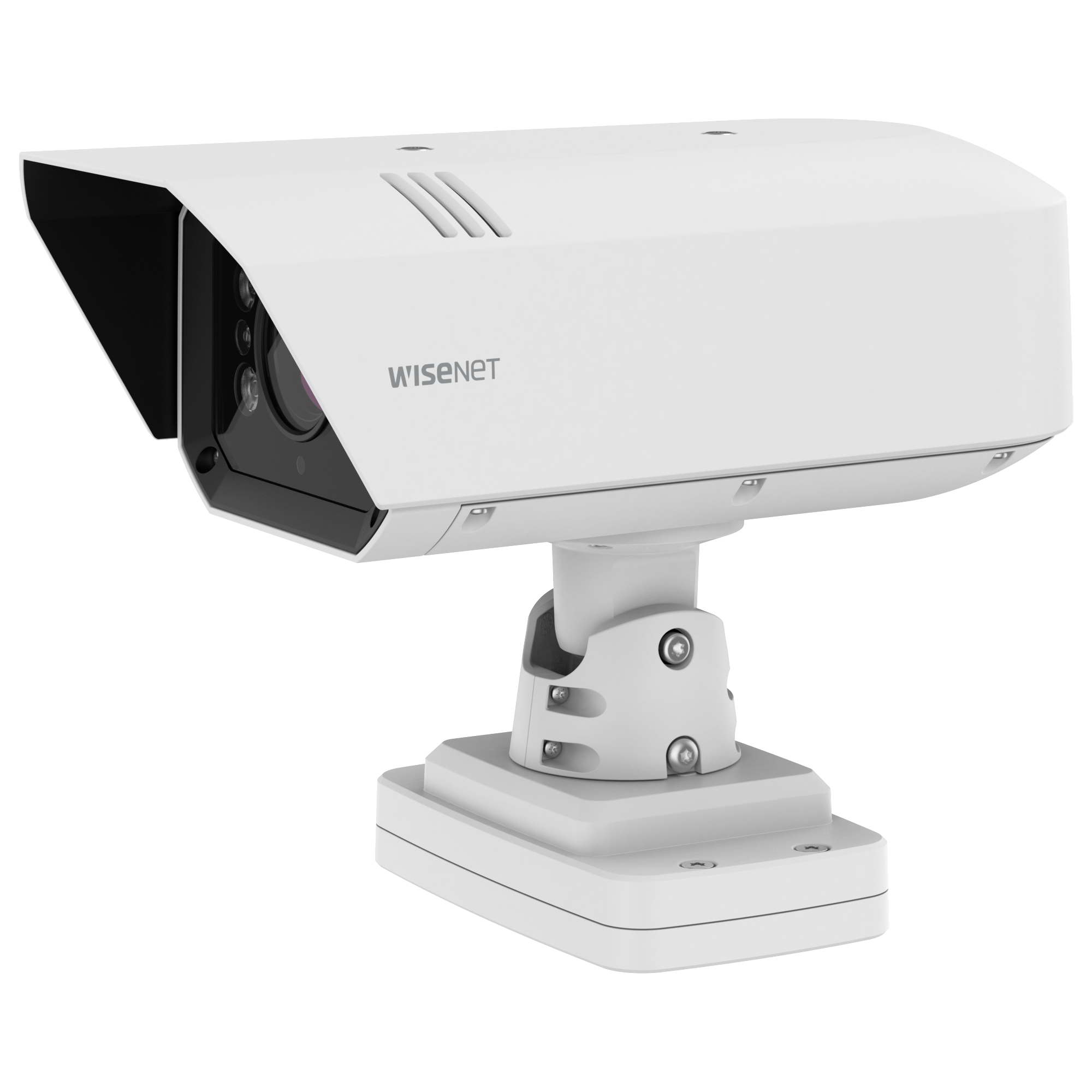

Road AI 3MP High Speed Global Shutter Camera


La caméra Road AI 3MP avec obturateur global haute vitesse.

  • All in one solution with ANPR, MMCR and vehicle classification analytics, pre-installed and licensed
  • Edge-based with Web-based user friendly interface
  • Built for highway surveillance with coverage of up to 2 traffic lanes at speeds of up to 200kmh (125mph)
  • 3MP Global Shutter technology provides a clear image at high speeds
  • Choice of accessories to suit many installation types
  • Search smarter and quicker with multiple inputs
  • Gain insights into the road usage by vehicle type, make and model
  • Choose from key Integrated VMS such as Genetec, Milestone and WAVE

Key Features

  • 3MP Global Shutter Sensor
  • Maximum 55fps @3MP and 50fps @2MP on all resolutions
  • 6.8~120mm(18x) motorized varifocal
  • WiseIR 50m (164.04ft)
  • Embedded Wisenet Road AI application with ANPR and MMCR Analytics
  • Recognition for up to 2 traffic lanes at speeds of up to 200kmh (125mph)
  • List Management, Smart Search, Statistics
  • Installation aids LPR Setup Tool, Road AI Setup Wizard, USB/CVBS video output
  • PoE++, 12VDC (HPoE Injector sold separately)
  • IP66, IK10, NEMA 4X, NEMA TS 2(2.2.8, 2.2.9)
UGS : TNO-7180RLP Catégories : , ,
Video TNO-7180RLP
Imaging Device 1/1.8″ 3MP CMOS, Global shutter
Resolution 3M:

2048×1536, 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576,

720×480, 640×480, 640×360, 320×240

2M:

1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480,

640×480, 640×360, 320×240

Max. Framerate 3M: H.265/H.264: Max. 55fps/50fps(55Hz/50Hz), MJPEG: Max. 5fps(55Hz/50Hz)

2M: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz), MJPEG: Max. 5fps (60Hz/50Hz)

Min. Illumination Color 0.1 Lux (1/30sec, gain 48dB)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 6.8~120mm(18x) motorized varifocal
Max. Aperture Ratio F1.6(Wide)~F4.13(Tele)
Angular Field of View H: 54.5º(Wide)~3.4º(Tele)/V: 42.3º(Wide)~2.5º(Tele)
Min. Object Distance 2m
Focus Control Simple focus, Focus save
Lens Type DC auto iris
Mount Type Board in type
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, SSDR
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization not support
Defog Not Support
Motion Detection 8ea, polygonal zones
Privacy Masking 6ea, Rectangle zones

– Color: Grey/Green/Red/Blue/Black/White

Gain Control Support
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Not Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/25 ~ 1/12,000sec) / Double shutter mode
Video Rotation Flip, Mirror
Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
Serial Interface RS-485/422(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Configurable 4 Port
